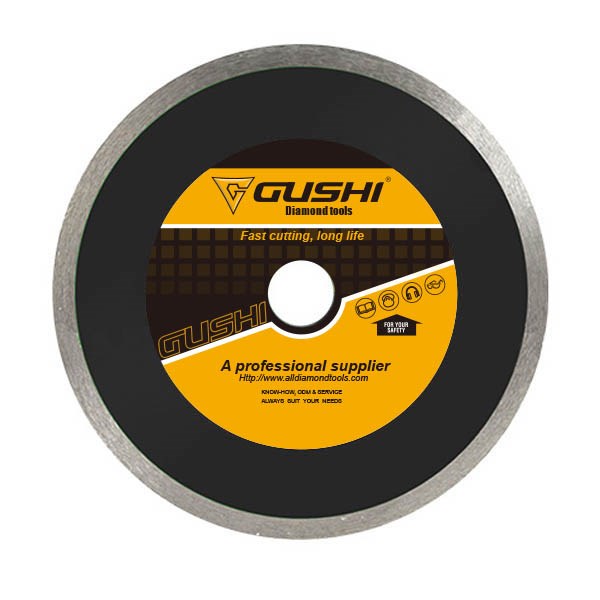

Diamond Continuous Rim Saw Blade For Cutting Marble,Tile,Ceramic,Porcelin
Diamond continuous rim blades have softer bonds for cutting hard materials such as tile, porcelain, granite, ceramic, glass, and other materials that can chip easily. These diamond saw blades don’t have individual segments but instead have a solid, continuous rim or edge. Most diamond continuous rim blades are designed for wet cutting applications, providing the smoothest, chip free cuts.
Cold pressed, Hot pressed for choosing.
Grade of Diamond Blade: Standard, Premium, Supreme
|
Item
Number
|
Diameter
(Inch/mm)
|
Segment Width
(mm)
|
Segment Height
(mm)
|
Arbor Hole
(mm)
|
| 4HCR | 4″/105 | 1.7 | 5/7/10 | 22.23/20 |
| 4.38HCR | 4 3/8″/110 | 1.8 | 5/7/10 | 22.23/20 |
| 4.5HCR | 4.5″/115 | 1.8 | 5/7/10 | 22.23/20 |
| 5HCR | 5″/125 | 2.0 | 5/7/10 | 22.23/20 |
| 6HCR | 6″/150 | 2.1 | 5/7/10 | 22.23/20 |
| 7HCR | 7″/180 | 2.2 | 5/7/10 | DM /22.23/20 |
| 8HCR | 8″/200 | 2.4 | 5/7/10 | DM /22.23/20 |
| 9HCR | 9″/230 | 2.4 | 5/7/10 | DM /22.23/20 |
| 10HCR | 10″/250 | 2.6 | 5/7/10 | 25.4 |
